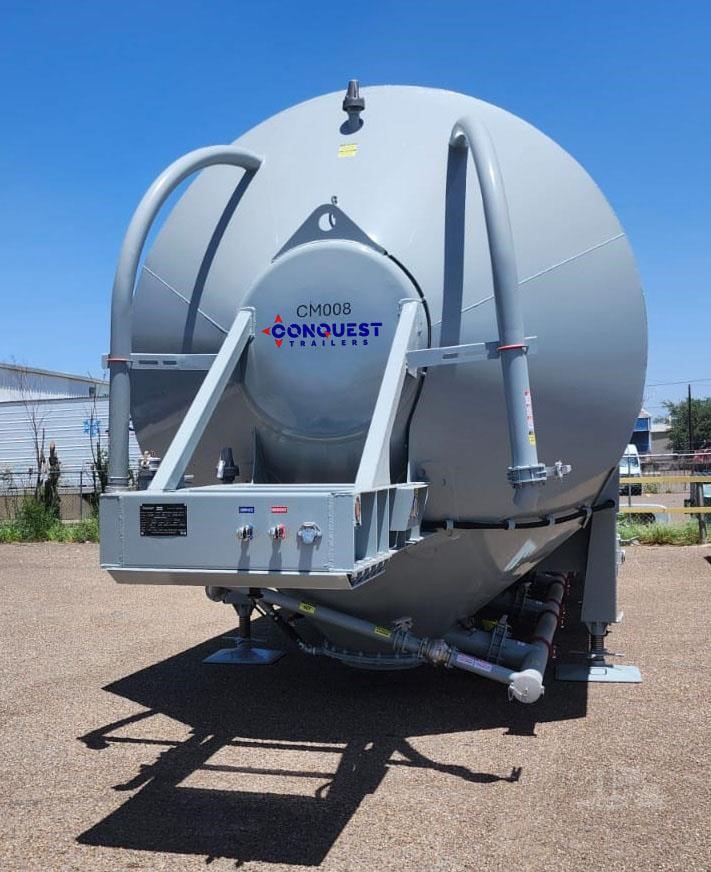

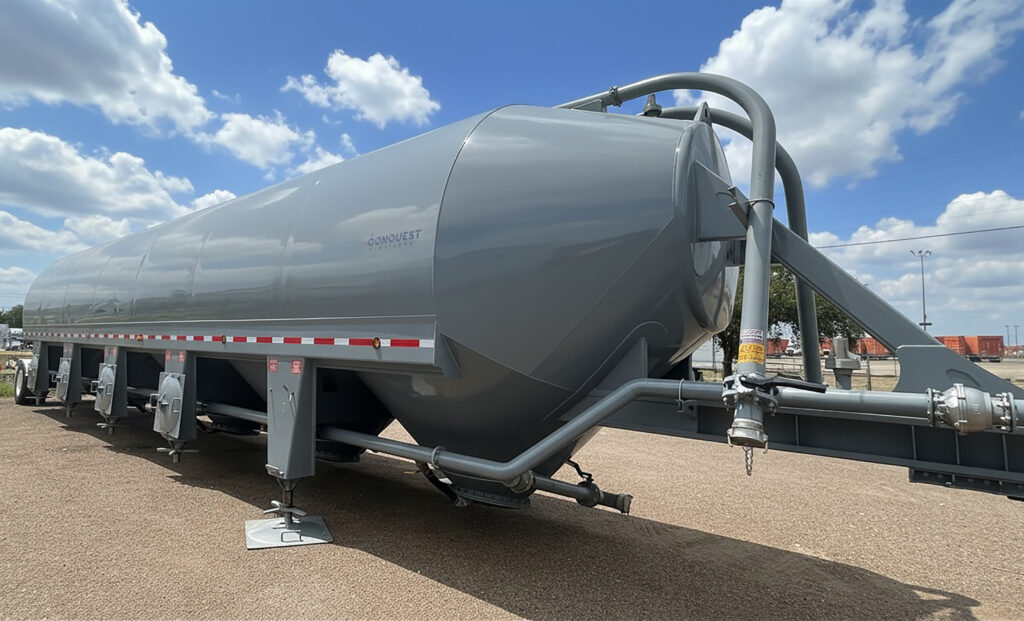

2025 GRECER 4100 CU FT CEMENT STORAGE PIG / GUPPY Trailer
$66,500.00 USD
Fixed
Send a Message to the bendavislogistix
General Details
-
Location
Laredo, TX, USA
-
Make
GRECER
-
Model
4100 CU.FT. PNEUMATIC PIG STORAGE SILO
-
Year
2025
-
Condition
New
Description
2025 GRECER 4,100 CUFT CEMENT PIG STORAGE SILO TRAILER PRODUCT DESCRIPTION: TOTAL LENGTH = 57 ́ TOTAL WIDTH = 11 ́ TOTAL HEIGHT = 13 ́7” VOL. CAP.= 152 Y2 BODY: 3/16 THICK AC H55 STEEL BODY
3/16 THICK H55 STEEL EDN CAPS
1⁄4 THICK STEEL FOR INTERIOR REINFORCEMENT
LOWER BODY FRAME 1⁄4 THICK STEEL
CHASSIS:
FRONT AND REAR 1⁄4 THICK STEEL CHASSIS
DISCHARGE CONES:
6 UNLOAD 45 DEGREES CONES
7 BTI AERATION SYSTEM PER CONE
DOMES:
ONE DOME ROOF WITH A 6 CLAMPS ALUMINUM PRESSURE CAP.
DISCHARGE:
FRONT AND REAR 4” TUBE RELIEF SYSTEM PRESSURIZED UNLOAD SIDE SYSTEM (5” TUBE OUTLET TUBE) AND 6” BUTTERFLY VALVES ON EACH CONE AND STEEL CLAMPS
LOADING SYSTEM LINES:
FRONT AND REAR LOAD SYSTEM WITH 4” INLET TUBE.
SIDE LADDER:
SIDE REMOVABLE LADDER WITH WORKING SCAFFOLD
SUSPENSION:
30,000 LBS HUTCH MECHANICAL SUSPENSION WITH 3 LEAF SPRINGS.
SIDE SUPPORTS:
10 SCREW JACKS WITH 4” SPINDLE AND 3/8 THICK SHOES, WITH STEEL CABLE FOR SECURE BOLTS.
AXLES AND OTHERS:
ONE 77.5 TRACK AMPRO AXLE WITH 30,000 LBS CAP.
DOUBLE BOOSTER
LIGHTS:
7 VIAS LIGHTS CONNECTORS (PHILLIPS) AND STROBE LIGHT
WATERPROOF HARNESSES AND REFLECTIVE TAPES
KING PIN:
HOLLAND 3/8 KING PIN
PAINT:
ONE COLOR (LIGHT GREY) POLYURETHANE PAINT APPLIED ON EPOXY PRIMER.
WHEELS:
STEEL ACP 8.5 X 24.5 10 LUGS
TIRES:
TRIANGLE 24.5
