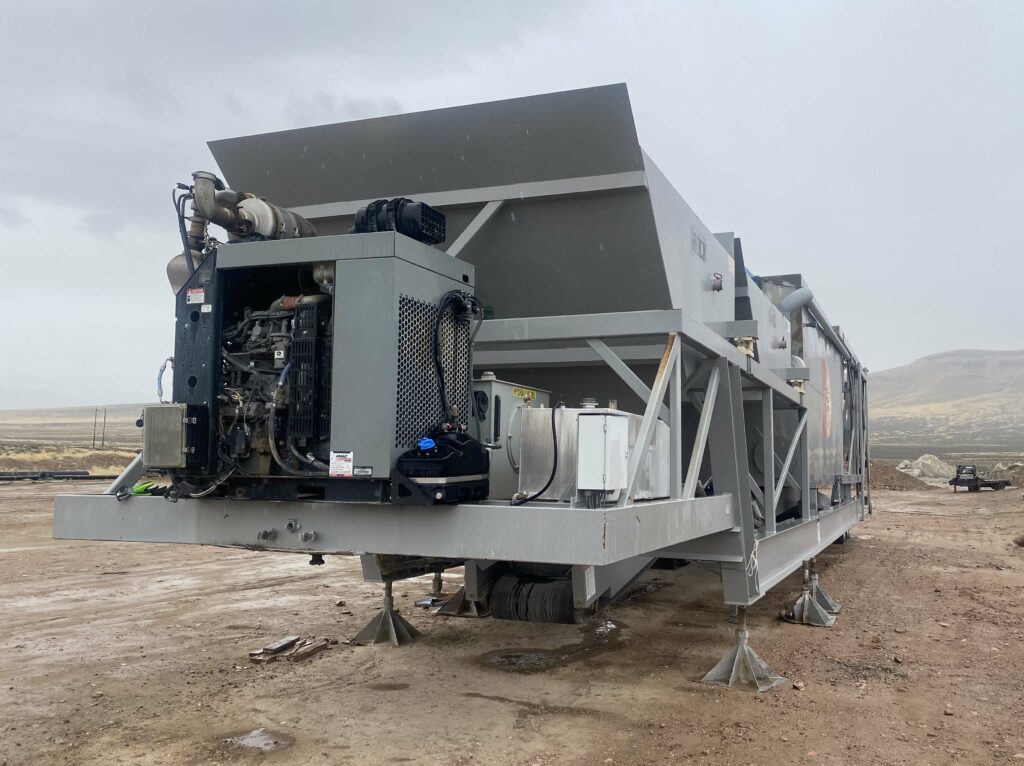

A 2021 Cemco Model 300 portable concrete batch plant is available for sale. This unit is fully self-contained with onboard power, extended 60/40 split silo, Jonel Archer controls, and a converted batch house trailer. The plant has only batched approximately 38,000 yards to date, which is relatively low usage for a Model 300 and makes it a strong candidate for a buyer looking for a modern, ready-to-work portable plant.

Location

• The complete package is located outside Winnemucca, Nevada and is immediately available for pickup or transport.

Aggregate Bins & Silo

• 2 aggregate bins – extended 60/40 split silo

• 2-load / 1-load configuration, approx. 75-ton capacity

• Dimensions: 68’ long × 12’ wide × 14’ 6” tall

• Estimated weight: 62,000 lbs

• 60/40 split silo configuration with 325 bbl / 216 bbl volumes

  • Approx. 1300 ft³ / 864 ft³

Power & Hydraulics

• 173 HP Tier 4 John Deere diesel engine

• Hydraulic power supply operates all plant accessories

• Accessories do not require an outside power source

Dust Collection

• 5000 CFM silo-mounted load-point dust collector

• Mounts directly to the silo

• Powered by the batch plant (no external power required)

Controls, Batch House & Storage

• Equipped with Jonel Archer batching software and hardware (Material System)

• Controls are mounted inside a 2007 53' dry van trailer

• Trailer converted to a portable batch house / parts storage / mobile workshop

• Partition wall separates batch office from storage/workshop space

• Space suitable for tools, spare parts, and onsite support items

Compatibility With Cemco’s Optional Third Aggregate Bin

This plant configuration supports Cemco’s optional third aggregate bin, which mounts above the aggregate belt once the silo is in the upright position. For transport, the auxiliary bin is simply removed before folding the silo into its travel mode, and the bin is hauled separately when the plant is moved.

Even with the separate transport requirement, the third bin offers valuable flexibility for operations needing additional aggregate types, expanded storage, or more mix design versatility.

Usage & Availability

• Total production: approximately 38,000 yards

• Moderate-use plant relative to typical Model 300 lifecycle

• Fully operational and ready to go back to work immediately

This batch plant includes all key operational details such as engine type, aggregate capacities, silo configuration, dust collection system, Jonel controls, hydraulic setup, physical dimensions, and total yards produced. These specifications help buyers verify suitability for their projects and ensure the plant is properly matched to production requirements.
